An ecological pyramid is a graphical representation of Ecological Succession that numerically depicts the structure of an ecosystem with the distribution of energy, biomass, or number of organisms at various trophic levels. Generally divided into three types: pyramid of number, pyramid of biomass, and pyramid of energy, these representations show how every next level adjusts to fewer organisms because of the energy transfer inefficiency.

This Story also Contains

What is an Ecological Pyramid?
Importance of Ecological Pyramids
Types of Ecological Pyramids
Comparison of Ecological Pyramids

Ecological Pyramids: Definition, Meaning, Types, Importance, Structures, Functions

Based on the 10% law suggested by Lindeman (1942), just 10% of the energy moves from one trophic level to the next, and the remaining is lost as heat, respiration, and metabolism. In the majority of ecosystems, the energy pyramid is always vertical, indicating the one-way flow and loss of energy. This is ecological in nature, giving us important information about the dynamics of food webs, trophic relationships, and ecosystem stability.

What is an Ecological Pyramid?

An ecological pyramid can be characterised as a graphical diagram which shows the trophic relationship within an ecosystem. Ecological pyramids are applied to represent the structure and function of the transfer of energy, biomass, and the number of organisms within each trophic level. Ecological pyramids help ecologists in examining how the flow of energy occurs through food chains and interpreting the effectiveness of energy conversion within each level.

Generally, energy declines considerably at increased trophic levels owing to metabolic losses, as proposed by Lindeman's 10% law. Ecological pyramids further of great importance to primary producers for ecosystem balance and offer information on population dynamics and environmental sustainability.

Also Read

NEET Highest Scoring Chapters & Topics

Know Most Scoring Concepts in NEET 2024 Based on Previous Year Analysis.

Know More

Importance of Ecological Pyramids

Ecological pyramids are very important tools to understand the flow of energy, the distribution of biomass, and the population structure within the ecosystem. They help in picturing the efficiency of energy transfer and identifying potential imbalances in ecosystems.

Types of Ecological Pyramids

There are three types of ecological pyramids, which are pyramids of numbers, pyramids of Biomass and pyramids of energy. Each type gives a new vision concerning the structure and function of the ecosystem. All three of them are discussed below:

S.No.	Type of Pyramid	What It Shows	Describes
1	Pyramid of Numbers	Number of individual organisms at each trophic level	Indicates population size and decline at higher levels
2	Pyramids of Biomass	Total dry mass (biomass) of organisms at each trophic level	Highlights the total living matter available on each level
3	Pyramid of Energy	Flow of energy from producers to apex consumers across trophic levels	Shows energy efficiency and loss (as per the 10% law)

Pyramid of Numbers

A pyramid of numbers describes the number of individual organisms at each trophic level in an ecosystem, but it usually has the shape of a pyramid because of the large number of producers at the base and relatively smaller numbers due to less number of top-level predators. Basic types of Pyramid of Numbers are discussed below:

Forest Ecosystem: Many small plants at the base, fewer herbivores like deer, and even fewer top predators like tigers.
Grassland Ecosystem: Many grasses, herbivores like rabbits and fewer predators like hawks.
Inverted Pyramid in Parasitic Food Chains: A tree with many birds that are parasitised by still more fleas.

Pyramid of Numbers

Pyramid of Biomass

Biomass pyramid is a diagrammatic representation that shows the sum of dry weight of all the organisms present at every trophic level in an ecosystem per unit area (usually in g/m² or kg/m²). The biomass pyramid is usually erect in terrestrial ecosystems since the weight of producers (plants) is higher than that of the herbivores, which is higher than that of carnivores. This model helps in the understanding of the amount of living organic matter on which higher trophic levels are supported.

Energy losses and biomass transfer inefficiencies are considerable according to ecological research, including that of Odum (1971). As an example, only 10–20% of biomass is transferred from one trophic level to the next, with the remainder being lost to respiration, excretion, and decay. In aquatic ecosystems, the pyramid of biomass can appear to be inverted since the phytoplankton (producer) biomass is far smaller than the zooplankton (primary consumer) biomass, even though it has a higher turnover rate.

Pyramid of Biomass

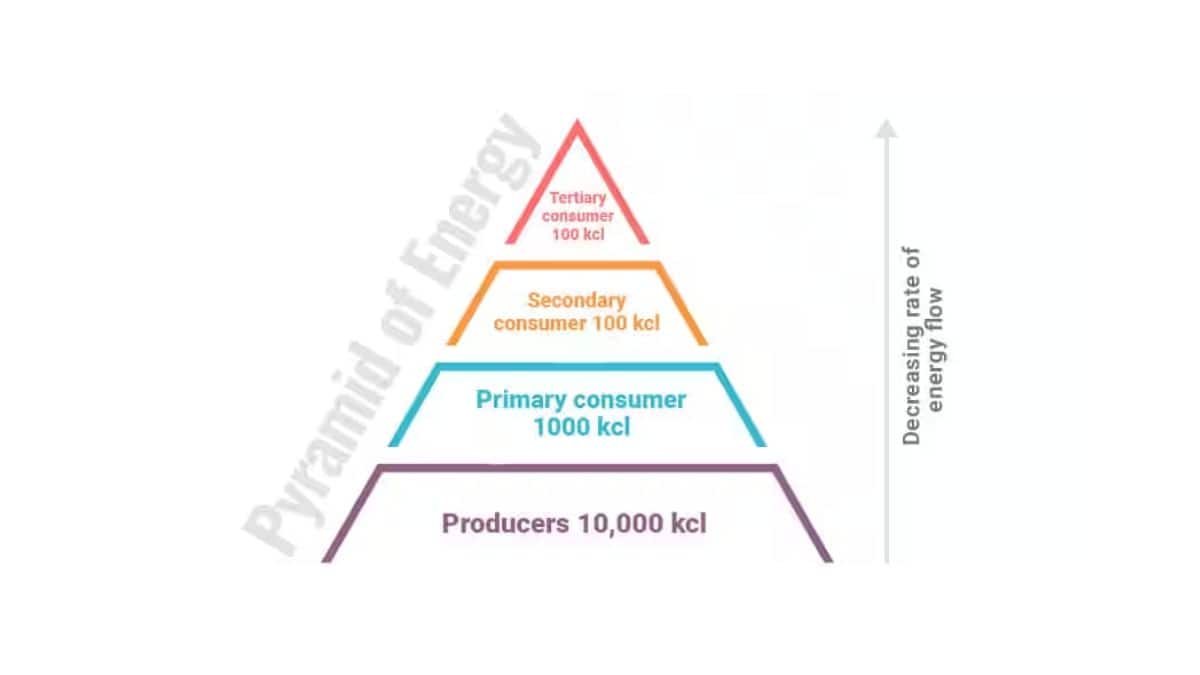

Pyramid of Energy

A pyramid of energy is a diagrammatic representation of energy flow through the trophic levels of an ecosystem over a given period. It normally is in a pyramid shape because of the loss of energy at each trophic level.

The forest ecosystem may have a large input of energy at the base of the pyramid due to sunlight trapped by trees, but the aquatic ecosystem can have a different pattern in the flow of energy.

Pyramid of Energy

Comparison of Ecological Pyramids

The comparision of each type of pyramid are described below:

Aspect	Pyramid of Numbers	Pyramid of Biomass	Pyramid of Energy
Definition	Represents the number of organisms at each trophic level	Represents the total dry mass of organisms at each trophic level	Represents the flow of energy through each trophic level over time
Appearance	Can be upright or inverted depending on the ecosystem structure	Usually upright in terrestrial ecosystems, but can be inverted in aquatic systems	Always upright due to the unidirectional flow of energy
Limitation	Misleading, as it doesn't consider the size or biomass of organisms	Biomass can fluctuate seasonally it doesn’t account for the turnover rate	Difficult to measure only shows quantity, not quality of energy
Inversion Possibility	Yes – seen in parasitic food chains or ecosystems with many small organisms	Yes, especially in aquatic ecosystems where consumer biomass exceeds producer biomass	No energy flow follows the second law of thermodynamics and is always reduced at higher levels
Accuracy	Less accurate – may not reflect actual energy or biomass contribution	More accurate than numbers, but still affected by time and environmental factors	Most accurate and informative in terms of ecosystem function
Data Collection	Relatively easy – just count individuals	Moderate – requires measuring biomass, which varies with time	Difficult and time-consuming – requires measuring energy transfer rates

Also Read

Frequently Asked Questions (FAQs)

1. What are ecological pyramids?

Ecological pyramids refer to the graphical representation of the relation between different trophic levels in an ecosystem based on numbers, biomass, or energy.

2. What is a pyramid of numbers?

The pyramid of numbers depicts the number of organisms at every consecutive trophic level of an ecosystem, obviously with the number decreasing progressively up the trophic levels.

3. Why can a pyramid of biomass be inverted?

A pyramid of biomass can be inverted in aquatic ecosystems if the biomass of primary consumers at any time becomes quite high compared to the producers.

4. Why is the Pyramid of Energy important?

A pyramid of energy describes the movement of energy at every successive trophic degree over a given period with emphasis on energy loss at each stage and hence inefficiency of energy transfer.

5. What is the impact of human activities on ecological pyramids?

Human activities disrupt energy flow in the pyramids, provide conditions for the reduction of biodiversity, and alter population structures. These may further result in declines or extinctions of species with very serious implications for stability and functioning in ecosystems.
